At Scottsdale Construction Systems, we are excited to introduce our latest innovation: the FrameExtend24. This cutting-edge extension sleeve unit is designed to revolutionize the construction industry by offering unparalleled precision and efficiency in framing projects.  This brand new rollforming innovation from Scottsdale will be marketed by under our Knudson by Scottsdale brand, and it will be an ideal product for ceiling and wall contractors, steel framing specialty contractors, stud and track manufacturers, as well as for self-perform general contractors.

What is FrameExtend24?

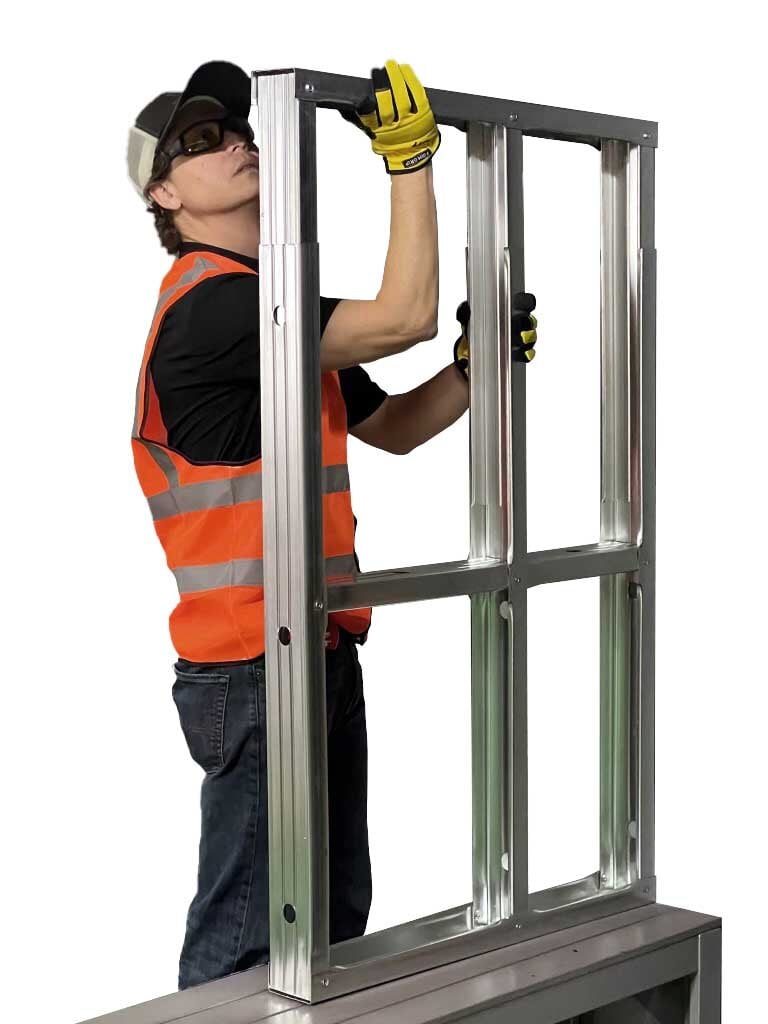

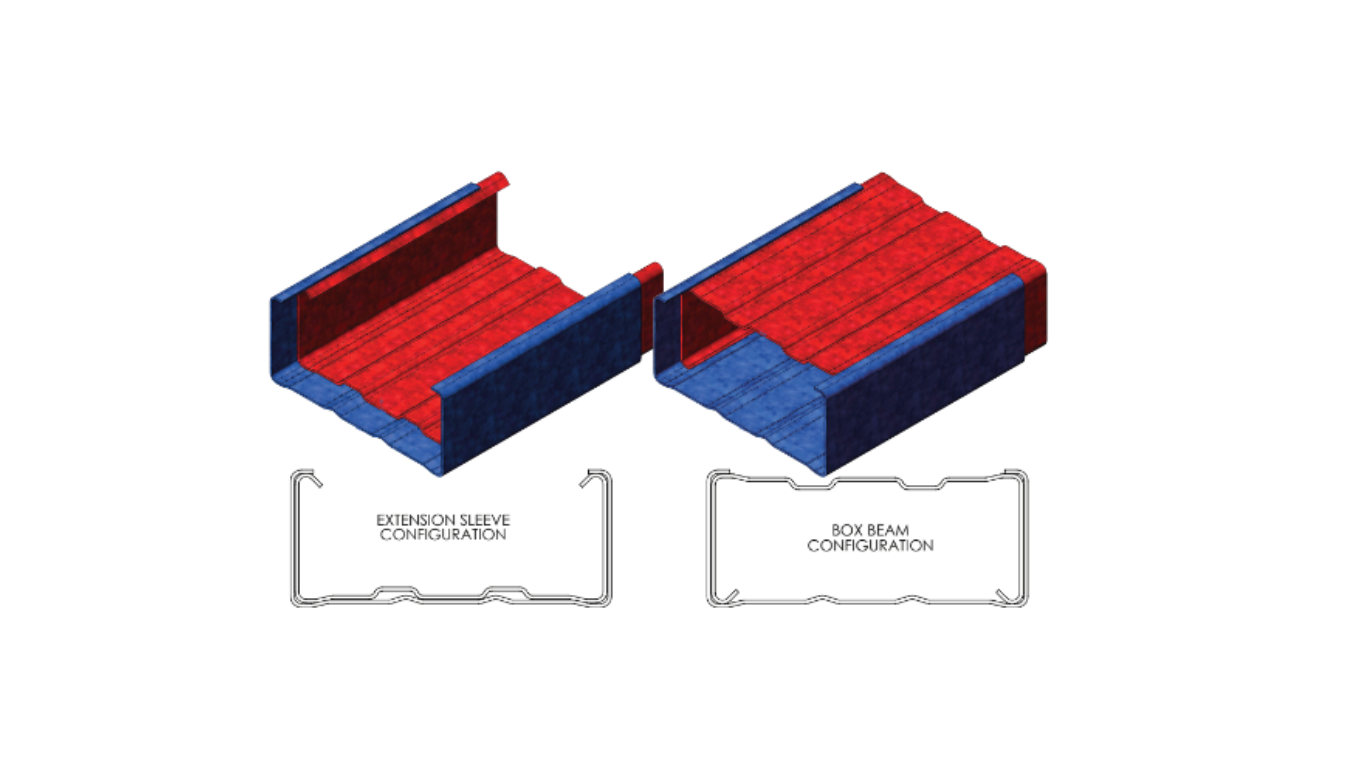

The FrameExtend24 (FE24 in short) is an auxiliary roll forming machine that transforms a pre-formed C-section into a smaller C-section that fits seamlessly inside the original part. By reducing the overall part dimensions – both web width and flange height – by approximately 2.5 mm or 0.1 in., this machine creates a sleeve that can be easily slid inside the original part. This sleeve can be used to create telescoping, extendable studs or boxed beam sections, perfect for posts, traditional headers, and any other application where additional strength or a closed member is required.

IMG_2571





































What problem does FrameExtend24 solve?

In non-load bearing wall applications where metal stud steel framing is subject to dimensional uncertainties of the supporting concrete, steel, or another superstructure, contractors typically have a difficult time panelizing given the inability to determine the exact as-built dimensions of the supporting structure the panel attaches to.  As a result, ceiling and wall contractors typically engage in a labor intensive on-site work of cutting studs to size, or relying on costly deflection clips.  FE24 enables panelizing through a unique telescoping mechanism allowing for pre-assembled telescoping wall panel to extend and fit perfectly underneath a supporting structure.

The same solution can also be employed in load-bearing or non-load-bearing context when transporting pre-fabricated steel framing is difficult due to logistical confines (trucking limitations, tight elevators, etc.).  Either a load-bearing or non-load bearing reduced steel-framed wall panel can be brought into the building (be it an attic, a basement, or a constrained elevator space), and extended into its final height.

FrameExtend24 is an ideal complement to Knudson by Scottsdale KFD-2025G1 model equipped with deflection track slot tooling whereby the powerful combination of the two devices virtually eliminates dimensional uncertainty of the finished structure as a factor in steel framing.  Thereby, both costly rework or timely on-site fabrication can be eliminated.  FE24 also works with Scotpanel 7090G1/G2, 5090G1/G2, 5140G1/G2, or 7140G1/G2 machines.

Design spreadsheets can be obtained by engineering and contracting professionals through Scottsdale’s knowledge database.

Designed for Ultimate Efficiency

The FrameExtend24 is the ultimate intelligent framing tool, engineered to be the perfect solution for wall and ceiling contractors. It minimizes wasted time and material by addressing uncertain as-built soffit height dimensions. Whether for load-bearing or non-load-bearing applications, this tool is optimized for Scottsdale ICC-ES approved shapes and is available globally, customizable to local power requirements.  However, Scottsdale can readily adopt the device to any other standard SSMA or SFIA library cold-formed steel C shapes, such as the ones produced by our Knudson by Scottsdale KFS and KFD series roll formers, upon request.

Why Choose FrameExtend24?

Efficiency and Precision: Expedites load-bearing and non-load-bearing applications by eliminating errors, lost time, and rework.

Versatility: Allows for adjustable wall panel height, enabling penalization of non-structural partitions and facilitating easy transport through small elevators or narrow corridors.

Strength and Reliability: Perfect for creating boxed beam sections for posts, headers, and more, providing additional strength where needed.

Global availability: Customizable to meet local power requirements, ensuring
accessibility for contractors worldwide.

Diseño sin título (71)

Evaluated and modeled by top experts in the industry, the FrameExtend24 is poised to make your next framing project far more efficient and effective.

Get in Touch

Ready to revolutionize your construction projects with the FrameExtend24? Contact us today for more information at +1 (888) 406-2080 or + 61-1300 671 345 or sales@scottsdalesteelframes.com

Elevate your framing projects to new heights with the FrameExtend24 from Scottsdale Construction Systems – the perfect fit, every time!
